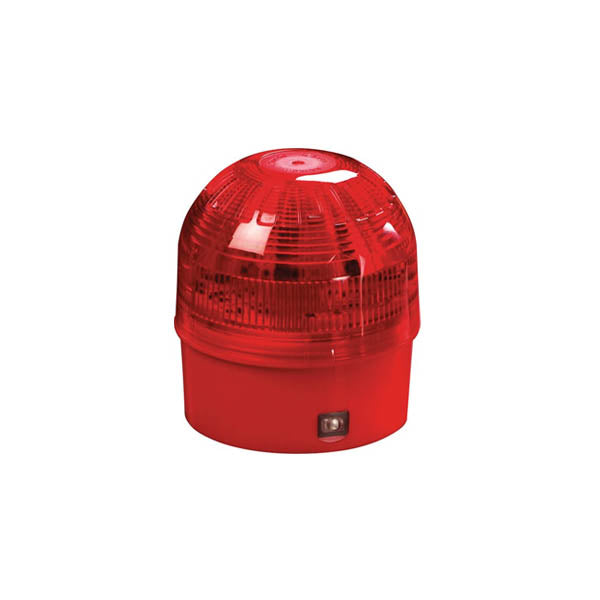

The Context Plus Intelligent Addressable Open-Area Sounder Beacon is designed for use in open areas. it is powered directly from the loop and need no external power supply.
Operates at 17–28V DC and is polarity sensitive.
Nominal sound output of 100dB(A) and is achieved at a current consumption of 8mA.
The Context Plus Addressable panel will be able to drive up to fifteen 55000-005IMC sounders per loop on average. However, the maximum number of devices that may be connected to a particular loop should be determined by a loop loading calculation.
Comes with a base which is fitted to the mounting surface and wired as a ‘first fix’.
